EtG
High-Precision Type

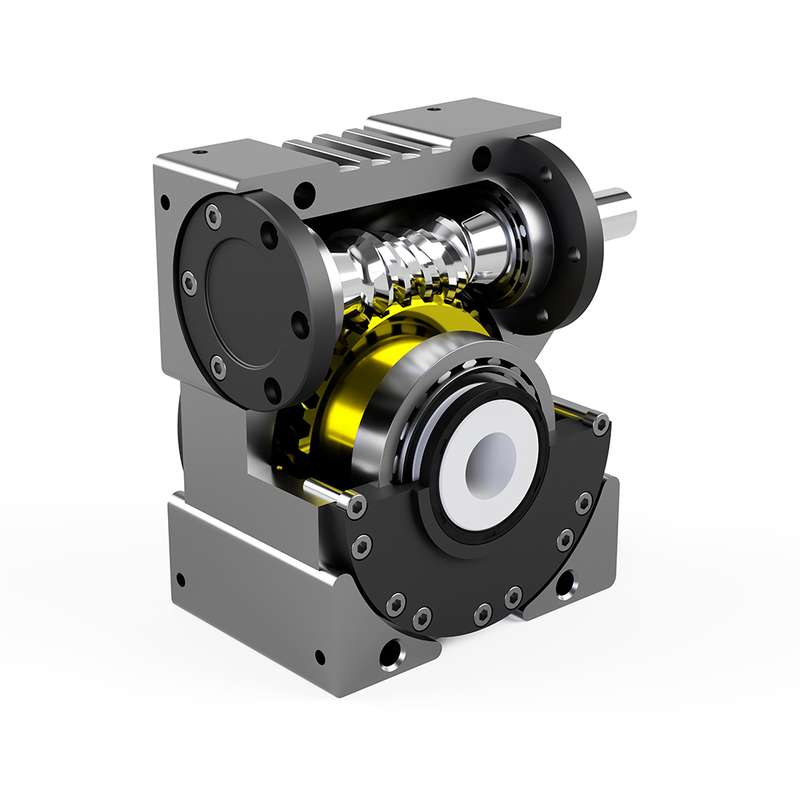

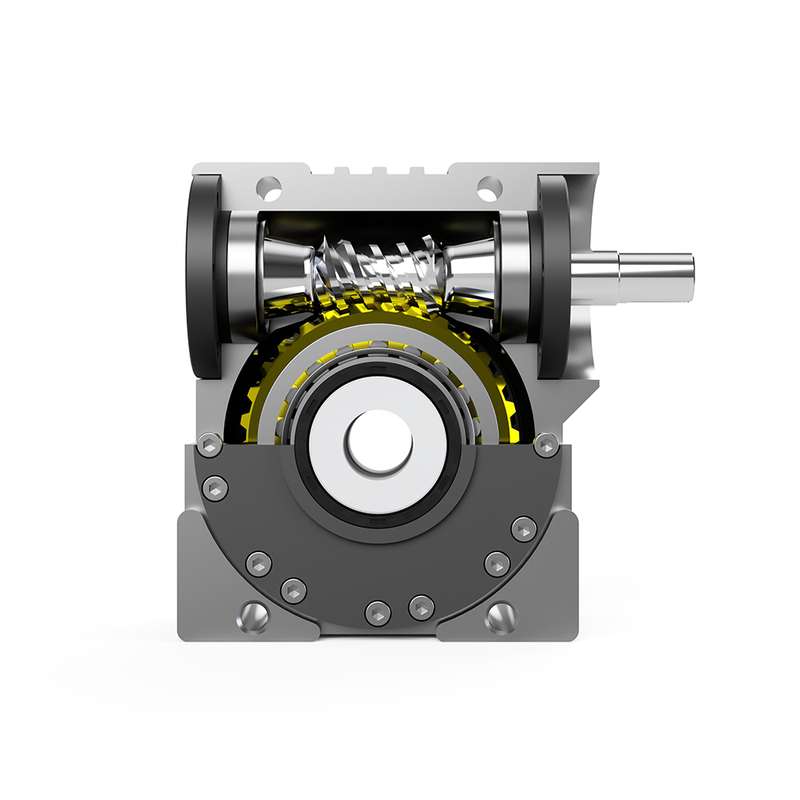

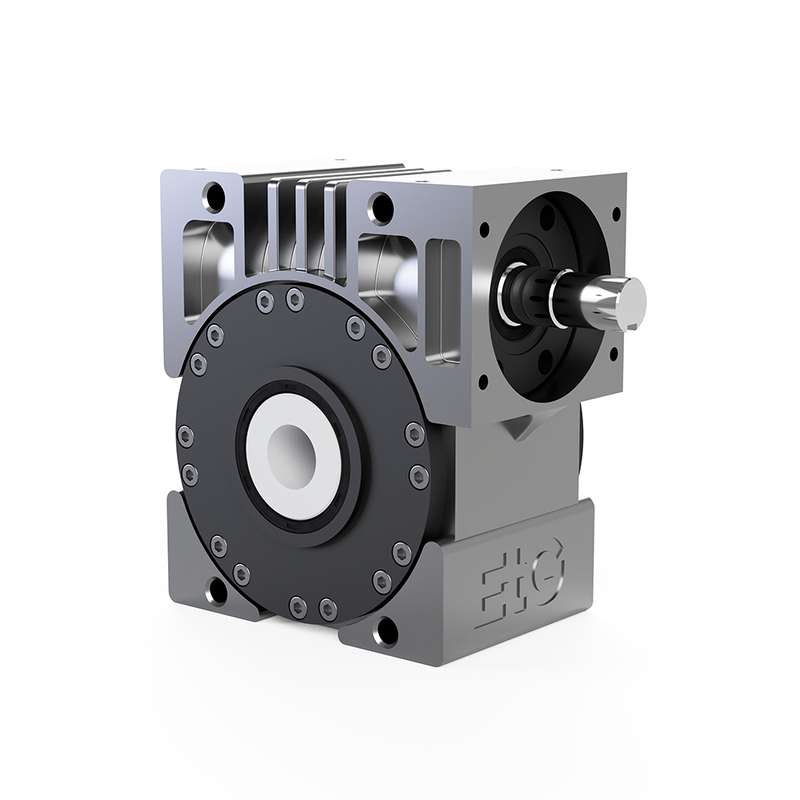

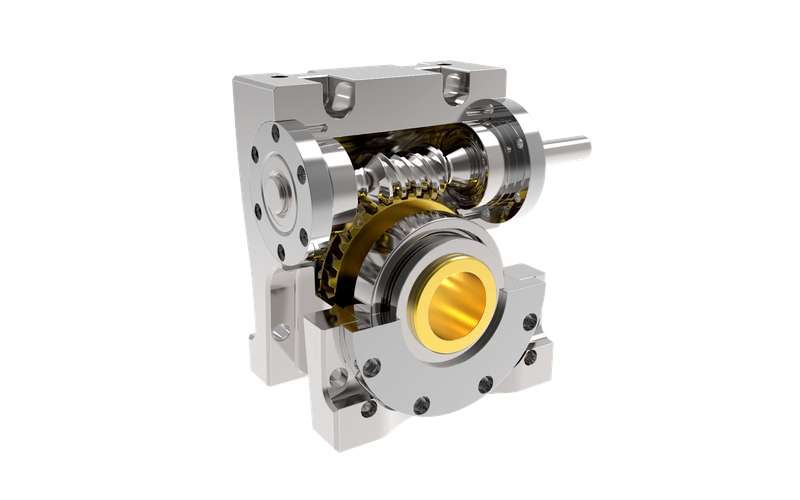

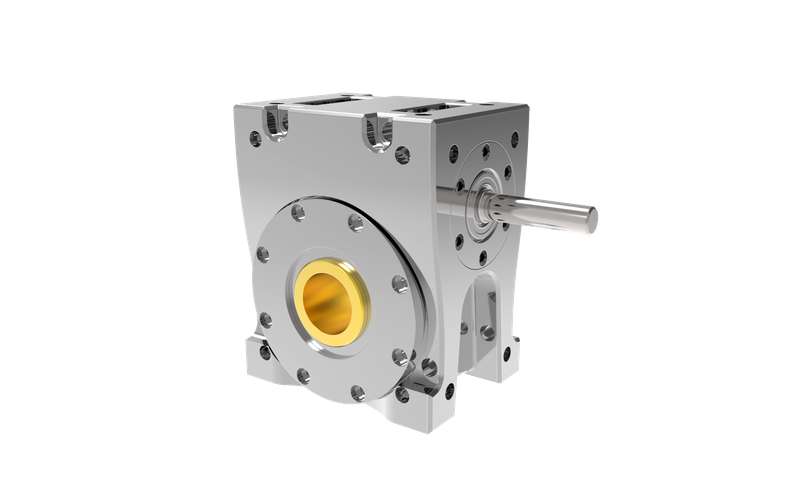

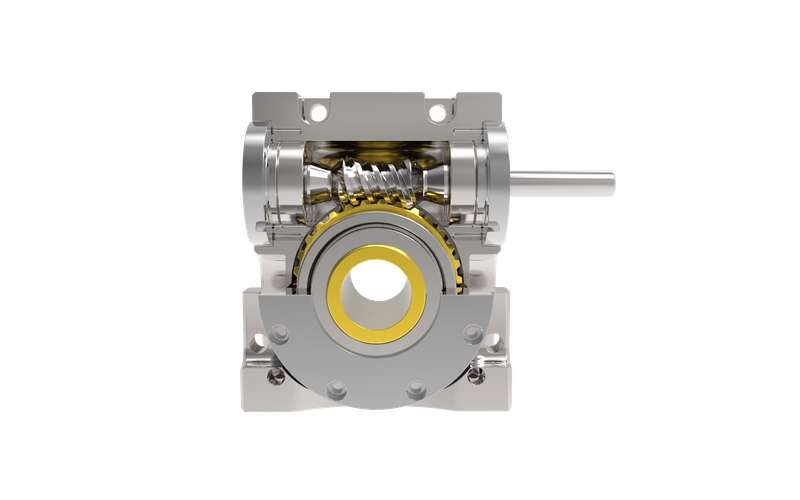

The globoid gearbox provides long-term stability with excellent torque transfer capability and low wear rate. The structure ensures smooth and quiet operation through face contact between orthogonal axes, reducing maintenance costs and extending machine life. It is applicable to all industries that require high performance.
◆ Key Features
- Low backlash (1 ≤ x ≥ 3 arcmin) for enhanced precision
- Simultaneous surface contact to minimize vibration and noise
- 200% increase in durability compared to conventional reducers
- Custom design options tailored to user needs
- High-quality tooth profiles manufactured with 5-axis precision machining
◆ Applications
- Industrial robotics
- Defense systems
- Precision machining equipment
| Gear Tooth | Globoid or Planar |
| Center Distance(mm) | 17 ~ 300 |
| Number of transmission ratios per size | 1:3 ~ 1:60 |
| Transmission ratio (i) | 5 up to 5,250 |
| Efficiency up to (%) | 85 ~ 97 |
| Torques up to (Nm) | 364,000 |
| Self-locking | optionally |
